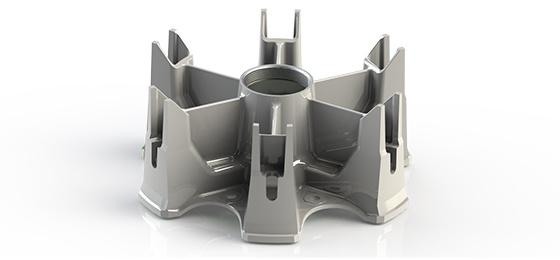

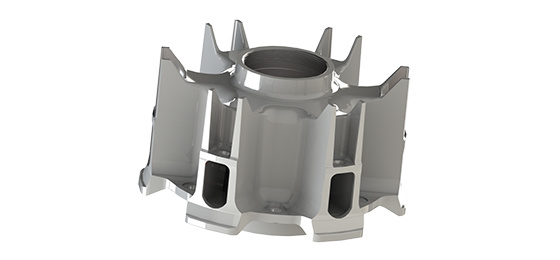

Six spoke wheels
| Six Spoke Hub Specifications | |||||||
| Item No. | Small Bearing | Big Bearing | Thread | Brake Drum Position | P.C.D | Max. Outside Dia | Total Height |
| AT12TS24-04-2 | 33213 | 33118 | M125×2 | Ø290 | Ø335 | Ø579 | 205 |
| AT14TS24-04-2 | 33215 | 32219 | M135×3 | Ø290 | Ø335 | Ø579 | 225 |
| AT16TS24-04-2 | 32314 | 32222 | M155×3 | Ø290 | Ø335 | Ø579 | 286 |
| AT16TS20-04-2 | 32314 | 32222 | M155×3 | Ø290 | Ø335 | Ø477 | 286 |
