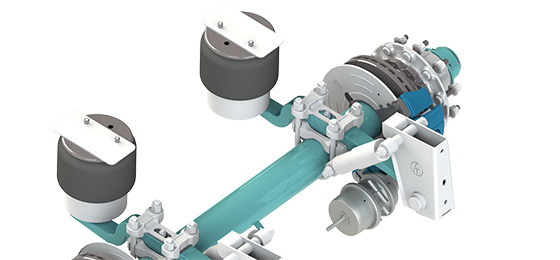

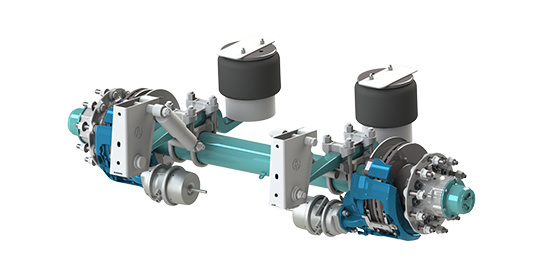

146 lightweight maintenance-free air suspension
| LIGHT WEIGHT AIR SUSPENSION | |||||||||||||||
| Light Weight Air Suspension Specification | |||||||||||||||
| Item No. | Mounting Height Range |
Axle Lifting | Capacity （Kg） |
Axle Beam （mm） |
Leaf Spring （mm） |
Axle Type | Track （mm） |
Suspension Center Distance |
Abutment Hole Height |
Air Bag Center Distance | Air Bag | Wheel Rim |
Note | ||
| Multiple Axle | |||||||||||||||
| ATK01A268NN006H11S460R1P00 | 360-384 | NO | 10000 | Φ146 | 70×62 | AT10RP50M1-00/ABS | 1840 | 900 | 268 | 780 | φ300 | 8585 | R22.5 | Hazardous chemicals car | |
| ATK01A268NN006H11S560R1P00 | 385-440 | NO | 10000 | Φ146 | 70×62 | AT10RP50M1-00/ABS | 1840 | 900 | 268 | 780 | φ300 | 8668 | R22.5 | Hazardous chemicals car | |
| ATK01A268NN006H03S560R1P00 | 470-520 | NO | 10000 | Φ146 | 70×62 | AT10RP50M1-00/ABS | 1840 | 900 | 268 | 780 | φ300 | 8668 | R22.5 | Hazardous chemicals car | |
| Remark: 1. Can provide the wheel base SP required by customers 2. Optional vehicle lift function |
|||||||||||||||
>
