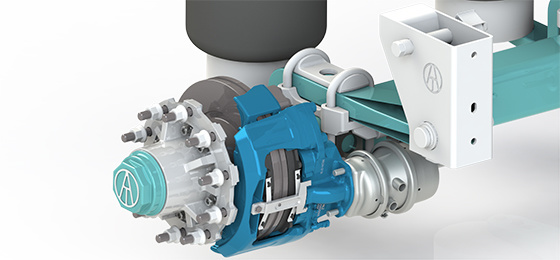

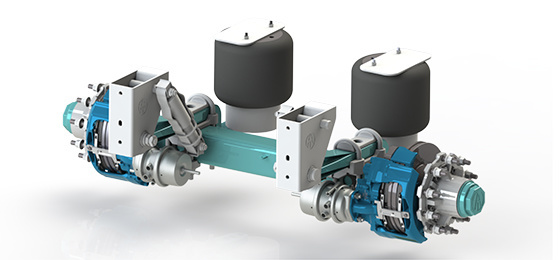

Square 150P6 bearing air suspension

AIR SUSPENSION
Air Suspension Specification
Item No.	Mounting Height Range	Axle Lifting	Capacity （Kg）	Axle Beam （mm）	Leaf Spring （mm）	Axle type	Track （mm）	Suspension Center Distance	Abutment Hole Height	Air Bag Center Distance		Air Bag	Wheel Rim	Note

	Multiple Axle
ATKBAZ13S-235QA2-00	395-409	YES	13000	□150	100×56	AT10QP1-00/ABS	1840	900	235	760	8	Φ330	R22.5	General trailer
ATKBAZ13-235QA2-00	375-409	NO	13000	□150	100×56	AT10QP1-00/ABS	1840	900	235	760	8	Φ330	R22.5	General trailer
ATKBAZ13S-268QA2-00	410-439	YES	13000	□150	100×56	AT10QP1-00/ABS	1840	900	268	760	8	Φ330	R22.5	General trailer
ATKBAZ13-268QA2-00	410-439	NO	13000	□150	100×56	AT10QP1-00/ABS	1840	900	268	760	8	Φ330	R22.5	General trailer
ATKBAZ13S-315QA2-00	460-485	YES	13000	□150	100×56	AT10QP1-00/ABS	1840	900	315	760	50	Φ330	R22.5	General trailer
ATKBAZ13-315QA2-00	460-485	NO	13000	□150	100×56	AT10QP1-00/ABS	1840	900	315	760	50	Φ330	R22.5	General trailer
ATKBAZ13S-340QA2-00	490-509	YES	13000	□150	100×56	AT10QP1-00/ABS	1840	900	340	760	80	Φ330	R22.5	General trailer
ATKBAZ13-340QA2-00	490-509	NO	13000	□150	100×56	AT10QP1-00/ABS	1840	900	340	760	80	Φ330	R22.5	General trailer
ATKBAZ13S-360QA2-00	510-534	YES	13000	□150	100×56	AT10QP1-00/ABS	1840	900	360	760	100	Φ330	R22.5	General trailer
ATKBAZ13-360QA2-00	510-534	NO	13000	□150	100×56	AT10QP1-00/ABS	1840	900	360	760	100	Φ330	R22.5	General trailer
ATKBAZ13S-235QAW1-00	375-399	YES	13000	□150	100×56	AT10QP1-00/ABS	1840	900	235	740	8	Φ340	R22.5	Hazardous chemicals car
ATKBAZ13-235QAW1-00	375-399	NO	13000	□150	100×56	AT10QP1-00/ABS	1840	900	235	740	8	Φ340	R22.5	Hazardous chemicals car
ATKBAZ13S-268QAW1-00	400-449	YES	13000	□150	100×56	AT10QP1-00/ABS	1840	900	268	740	8	Φ330	R22.5	Hazardous chemicals car
ATKBAZ13-268QAW1-00	400-449	NO	13000	□150	100×56	AT10QP1-00/ABS	1840	900	268	740	8	Φ330	R22.5	Hazardous chemicals car
ATKBAZ13S-315QAW1-00	450-500	YES	13000	□150	100×56	AT10QP1-00/ABS	1840	900	315	740	8	Φ330	R22.5	Hazardous chemicals car
ATKBAZ13-315QAW1-00	450-500	NO	13000	□150	100×56	AT10QP1-00/ABS	1840	900	315	740	8	Φ330	R22.5	Hazardous chemicals car
Remark: 1. Can provide the wheel base SP required by customers 2. Optional 500,000 km maintenance-free wheel ends 3. Optional front axle manual lifting or cab operation lifting 4. Optional vehicle lift function
