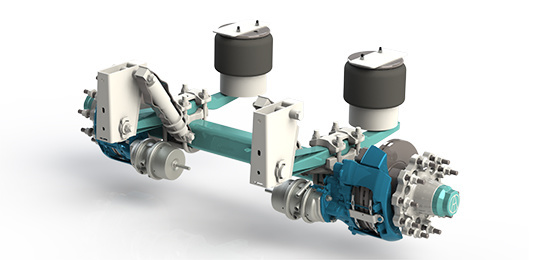

Square 120P6 bearing air suspension
| LIGHT WEIGHT AIR SUSPENSION | |||||||||||||||
| Light Weight Air Suspension Specification | |||||||||||||||
| Item No. | Mounting Height Range |
Axle Lifting | Capacity （Kg） |
Axle Beam （mm） |
Leaf Spring （mm） |
Axle Type | Track （mm） |
Suspension Center Distance |
Abutment Hole Height |
Air Bag Center Distance | Height of rear bracket (mm) | Airbag model | Wheel Rim |
Note | |
| Multiple Axle | |||||||||||||||
| ATKLA10-268EB1-00 | 430-470 | NO | 10000 | □120 | 70×62 | ATD10EP1-00/ABS | 1840 | 900 | 268 | 780 | 6 | 8585 | R22.5 | Hazardous chemicals car | |
| ATKLA10-268EB2-00 | 375-420 | NO | 10000 | □120 | 70×62 | ATD10EP1-00/ABS | 1840 | 900 | 268 | 780 | 6 | 8668 | R22.5 | Hazardous chemicals car | |
| ATKLA10-268EB3-00 | 460-510 | NO | 10000 | □120 | 70×62 | ATD10EP1-00/ABS | 1840 | 900 | 268 | 780 | 6 | 8668 | R22.5 | Hazardous chemicals car | |
| Remark: 1. Can provide the wheel base SP required by customers 2. Optional vehicle lift function |
|||||||||||||||
