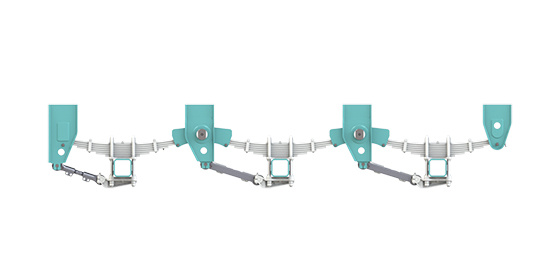

American Mechanical Suspension
| American Tri-axle Mechanical Suspension Specification | ||||||||
| Suspension Type | Height of Figth Wheel（mm） | pcs×thickness×width （mm） |
Unladen | Unladen | Unladen | H(mm) | Capacity （T） |
|
| ATMX8803-00/183 | 1180 | 9×16×90 | 455 | 446 | 433 | 183 | 13×3 | |
| ATMX8803-00/223 | 1220 | 9×16×90 | 495 | 486 | 473 | 223 | 13×3 | |
| ATMX8803-00/253 | 1250 | 9×16×90 | 525 | 516 | 503 | 253 | 13×3 | |
| ATMX8803-00/164 | 1180 | 9×16×90 | 436 | 427 | 414 | 164 | 13×3 | |
| ATMX8803-00/204 | 1220 | 9×16×90 | 476 | 467 | 454 | 204 | 13×3 | |
| ATMX8803-00/234 | 1250 | 9×16×90 | 506 | 497 | 484 | 234 | 13×3 | |
| American Tandem-axle Mechanical Suspension Specification | |||||||
| Suspension Type | Height of Figth Wheel（mm） | pcs×thickness×width （mm） |
Unladen | Unladen | H(mm) | Capacity （T） |
|
| ATMX8802-00/183 | 1180 | 9×16×90 | 441 | 433 | 183 | 13×2 | |
| ATMX8802-00/223 | 1220 | 9×16×90 | 481 | 473 | 223 | 13×2 | |
| ATMX8802-00/253 | 1250 | 9×16×90 | 511 | 503 | 253 | 13×2 | |
| ATMX8802-00/164 | 1180 | 9×16×90 | 422 | 414 | 164 | 13×2 | |
| ATMX8802-00/204 | 1220 | 9×16×90 | 462 | 454 | 204 | 13×2 | |
| ATMX8802-00/234 | 1250 | 9×16×90 | 492 | 484 | 234 | 13×2 | |
| ATMX8802-00/333 | 1180 | 9×16×90 | 591 | 583 | 333 | 13×2 | |
| American Tri-axle Mechanical Suspension Specification | ||||||||
| Suspension Type | Height of Figth Wheel（mm） | pcs×thickness×width （mm） |
Unladen | Unladen | Unladen | H(mm) | Capacity （T） |
|
| ATMX8603-00/183 | 1180 | 9×16×90 | 489 | 480 | 467 | 183 | 16×3 | |
| ATMX8603-00/223 | 1220 | 9×16×90 | 529 | 520 | 507 | 223 | 16×3 | |
| ATMX8603-00/253 | 1250 | 9×16×90 | 559 | 550 | 537 | 253 | 16×3 | |
| ATMX8603-00/164 | 1180 | 9×16×90 | 470 | 461 | 448 | 164 | 16×3 | |
| ATMX8603-00/204 | 1220 | 9×16×90 | 510 | 501 | 488 | 204 | 16×3 | |
| ATMX8603-00/234 | 1250 | 9×16×90 | 540 | 531 | 518 | 234 | 16×3 | |
| American Tandem-axle Mechanical Suspension Specification | |||||||
| Suspension Type | Height of Figth Wheel（mm） | pcs×thickness×width （mm） |
Unladen | Unladen | H(mm) | Capacity （T） |
|
| ATMX8602-00/183 | 1180 | 9×16×90 | 473 | 465 | 183 | 16×2 | |
| ATMX8602-00/223 | 1220 | 9×16×90 | 513 | 505 | 223 | 16×2 | |
| ATMX8602-00/253 | 1250 | 9×16×90 | 543 | 535 | 253 | 16×2 | |
| ATMX8602-00/164 | 1180 | 9×16×90 | 454 | 446 | 164 | 16×2 | |
| ATMX8602-00/204 | 1220 | 9×16×90 | 494 | 486 | 204 | 16×2 | |
| ATMX8602-00/234 | 1250 | 9×16×90 | 524 | 516 | 234 | 16×2 | |
