South African suspension
| Germany Single-axle Suspension | |||||||||
| Item No. | Unladen | Laden | H (mm) |
Pcs×Thickness×Width×Length（mm） | Front Hanger Thickness |
Equaliser Hanger Thickness |
Rear Hanger Thickness |
Equalizer Thickness |
Axle Load （T） |
| AT12XA1-00 | 486 | 456 | 138 | 12×12×100×1200 | 8 | 8 | 10 | 8 | 12 |
| AT12XA2-00 | 486 | 456 | 138 | 12×12×100×1200 | 10 | 10 | 10 | 10 | 12 |
| AT14XA0-00 | 486 | 456 | 138 | 12×12×100×1200 | 10 | 10 | 10 | 10 | 14 |
| AT14XA1-00 | 486 | 456 | 138 | 12×12×100×1200 | 8 | 8 | 10 | 8 | 14 |
| AT16XA0-00 | 511 | 481 | 138 | 14×12×100×1200 | 8 | 8 | 10 | 8 | 16 |
| AT16XA1-00 | 511 | 481 | 138 | 14×12×100×1200 | 10 | 10 | 10 | 12 | 16 |
| ermany Tandem-axle Mechanical Suspension | |||||||||
| Item No. | Unladen | Laden | H (mm) |
Pcs×Thickness×Width×Length（mm） | Front Hanger Thickness |
Equaliser Hanger Thickness |
Rear Hanger Thickness |
Equalizer Thickness |
Axle Load （T） |
| AT24XA1-00 | 486 | 456 | 138 | 12×12×100×1200 | 8 | 8 | 10 | 8 | 12×2 |
| AT24XA2-00 | 486 | 456 | 138 | 12×12×100×1200 | 10 | 10 | 10 | 10 | 12×2 |
| AT28XA0-00 | 486 | 456 | 138 | 12×12×100×1200 | 10 | 10 | 10 | 10 | 14×2 |
| AT28XA1-00 | 486 | 456 | 138 | 12×12×100×1200 | 8 | 8 | 10 | 8 | 14×2 |
| AT32XA0-00 | 511 | 481 | 138 | 14×12×100×1200 | 8 | 8 | 10 | 8 | 16×2 |
| AT32XA1-00 | 511 | 481 | 138 | 14×12×100×1200 | 10 | 10 | 10 | 12 | 16×2 |

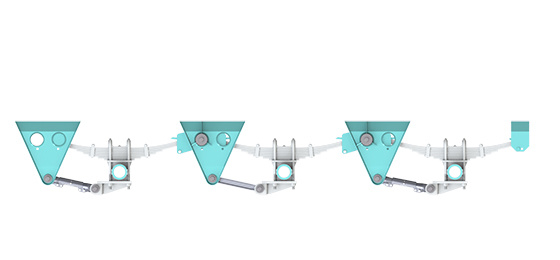

| Germany Tri-axle Mechanical Suspension | |||||||||
| Item No. | Unladen | Laden | H (mm) |
pcs×thickness×width×length（mm） | Front Hanger Thickness |
Equaliser Hanger Thickness |
Rear Hanger Thickness |
Equalizer Thickness |
Axle Load （T） |
| AT36XA1-00 | 486 | 456 | 138 | 12×12×100×1200 | 8 | 8 | 10 | 8 | 12×3 |
| AT36XA2-00 | 486 | 456 | 138 | 12×12×100×1200 | 10 | 10 | 10 | 10 | 12×3 |
| AT42XA0-00 | 486 | 456 | 138 | 12×12×100×1200 | 10 | 10 | 10 | 10 | 14×3 |
| AT42XA1-00 | 486 | 456 | 138 | 12×12×100×1200 | 8 | 8 | 10 | 8 | 14×3 |
| AT48XA0-00 | 511 | 481 | 138 | 14×12×100×1200 | 8 | 8 | 10 | 8 | 16×3 |
| AT48XA1-00 | 511 | 481 | 138 | 14×12×100×1200 | 10 | 10 | 10 | 12 | 16×3 |
