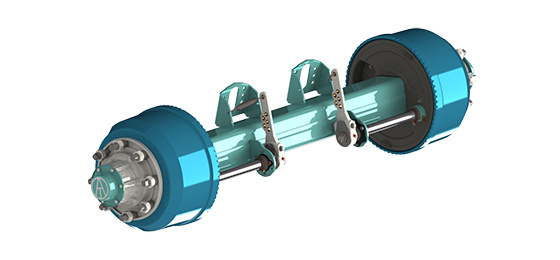

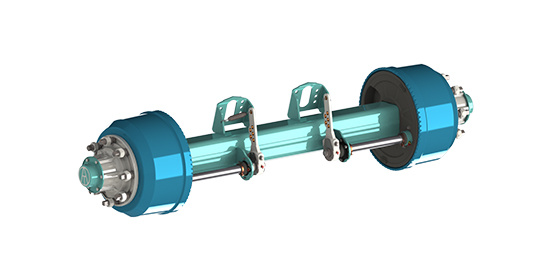

Thai Axle One
| Thailand Axle I Specification | |||||||||||
| Item No. | Capacity（Kg） | Bearing | Total Length （mm） | Track（mm） | Brake Drum Distance | Center Distance of Brake Chamber （mm） | Axle Beam（mm） | Brake Size (mm) |
Wheel Fixing | Studs（mm） | Recommend Wheel Rim |
| AT12T180T1-00 | 12000 | 33213 33118 |
2154 | 1840 | 1271 | 423 | □150×12 | Ø420×180 | Ø285×221 | 8-M20×1.5-LH JIS 8-M20×1.5-RH JIS |
7.50V-20 |
| AT14T180T1-00 | 14000 | 30313 33118 |
2152 | 1840 | 1271 | 423 | □150×14 | Ø420×180 | Ø285×221 | 8-M20×1.5-LH JIS 8-M20×1.5-RH JIS |
7.50V-20 |
