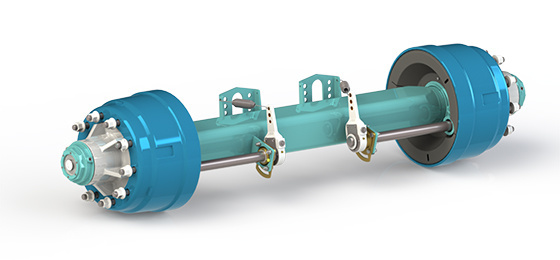

Thin oil lubricated axles
| Oil Lubrication Axle Specification | |||||||||
| Item No. | Capacity（Kg） | Brake Size (mm) |
Bearing | Track（mm） | Camshaft | Axle Beam（mm） | Wheel Rim Fixing | Studs（mm） | Recommend Wheel Rim |
| ATY13TWB1-00 | 13000 | Ø419×180 | HM518445/10 | 1840 | 588 | □150 | Ø335×281 | 10-M22×1.5-ISO | 7.50V-20 |
| ATY13TWB1-00(JIS) | 13000 | Ø419×180 | HM518445/10 | 1840 | 588 | □150 | Ø285×221 | 8-M20×1.5LH-JIS 8-M20×1.5RH-JIS |
7.50V-20 |
