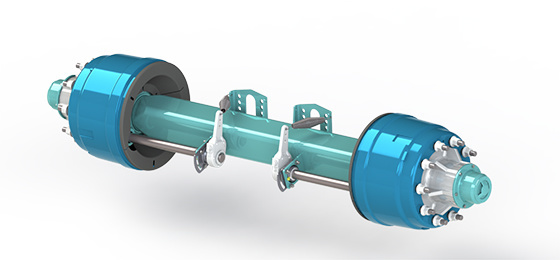

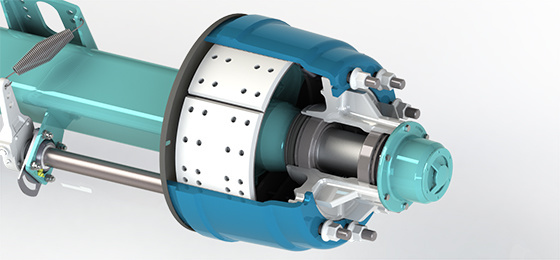

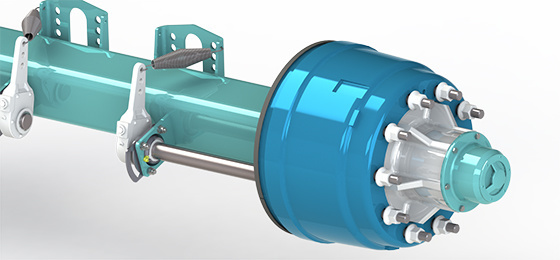

Maintenance-free drum brake shaft
Key words：
Hotline：
Maintenance-free drum brake shaft
| Item No. | Capacity（Kg） | Bearing | Axle Beam （mm） |
Brake Size （mm） |
Track （mm） |
P.C.D（mm） | Tirescrew | Steel Turn Position（mm） |
Recommend Wheel Rim |
Note |
| ATM10P09Q57A588A1840-00000 | 10000 | HM518445/10 | □150 | Φ419×220 | 1840 | Φ335 | 10-M22×1.5 | Φ280.8 | 7.5×20 | External brake drum |
| ATY13TWB1-00 | 13000 | HM518445/10 | □150 | Ø419×180 | 1840 | 335 | 10-M22×1.5-ISO | Φ280.8 | 7.5×20 | External brake drum |
| ATY13TWB1-00(JIS) | 13000 | HM518445/10 | □150 | Ø419×180 | 1840 | 285 | 8-M20×1.5LH-JIS 8-M20×1.5RH-JIS |
Φ220 | 7.5×20 | External brake drum |
