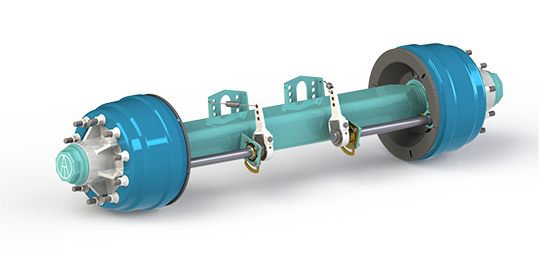

Merican Brake Drum External Axle
| American Outboard Drum Axle Specification | ||||||||||||
| Item No. | Capacity（Kg） | Bearing | Total Length （mm） | Track（mm） | Brake Drum Distance | Center Distance of Brake Chamber （mm） | Axle Beam（mm） | Brake Size(mm) | Spline No. | Wheel Fixing | Studs（mm） | Recommend Wheel Rim |
| AT13TW1-00 | 13000 | HM518445/10 | 2198 | 1840 | 1280 | 388 | □150 | Ø419×180 | 1.625″-37 | Ø335×281 | 10-M22×1.5ISO | 7.50V-20 |
| AT13TWB1-00 | 13000 | HM518445/10 | 2198 | 1840 | 1260 | 388 | □150 | Ø419×180 | 1.625″-37 | Ø335×281 | 10-M22×1.5ISO | 7.50V-20 |
| AT13TWB1-00(BSF) | 13000 | HM518445/10 | 2238 | 1880 | 1300 | 428 | □150 | Ø419×180 | 1.625″-37 | Ø335×281 | 10-7/8″-11BSF | 7.50V-20 |
| AT13TWB2-00（JIS） | 13000 | HM518445/10 | 2198 | 1840 | 1260 | 388 | □150 | Ø419×180 | 1.625″-37 | Ø285×221 | 8-M20×1.5JIS | 7.50V-20 |
| AT13TWB3-00 | 13000 | HM518445/10 | 2198 | 1840 | 1260 | 388 | □150 | Ø419×180 | 1.625″-37 | Ø285.75×221 | 10-M22×1.5ISO | 7.50V-20 |
| AT13TYWB1-00 | 13000 | HM518445/10 | 2198 | 1840 | 1260 | 388 | Ø127 | Ø419×180 | 1.625″-37 | Ø335×281 | 10-M22×1.5ISO | 7.50V-20 |
| AT13TYWB2-00(JIS) | 13000 | HM518445/10 | 2198 | 1840 | 1260 | 388 | Ø127 | Ø419×180 | 1.625″-37 | Ø285×221 | 8-M20×1.5JIS | 7.50V-20 |
| AT13TYWB3-00 | 13000 | HM518445/10 | 2198 | 1840 | 1260 | 388 | Ø127 | Ø419×180 | 1.625″-37 | Ø285.75×221 | 10-M22×1.5ISO | 7.50V-20 |
| AT16TW1-00 | 16000 | HM518445/10 HM220149/10 |
2218 | 1850 | 1198 | 354 | □150 | Ø419×220 | 1.625″-37 | Ø335×281 | 10-M22×1.5ISO | 8.00V-20 |
| AT16TWB1-00 | 16000 | HM518445/10 HM220149/10 |
2218 | 1850 | 1198 | 354 | □150 | Ø419×220 | 1.625″-37 | Ø335×281 | 10-M22×1.5ISO | 8.00V-20 |
