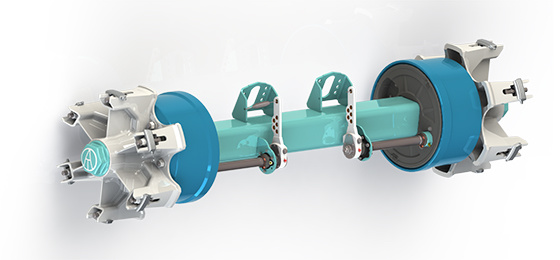

German six-spoke wheel axles
| Germany Six Spoke Axle Specification | ||||||||||||
| Item No. | Capacity（Kg） | Bearing | L | SP | BL | GM | Axle Beam（mm） | Brake Size （mm） |
Ø1 | Ø2 | Studs（mm） | Recommend Wheel Rim |
| Total Length （mm） | Track （mm） |
Brake Drum Distance | Center Distance of Brake Chamber（mm） |
Max.Dia. | Max.Dia. | |||||||
| AT12TS24-00 | 12000 | 33213 33118 |
2138 | 1840 | 1180 | 356 | □150 | Ø420×200 | Ø579 | Ø553.5 | 6-M20×2 | 8.50V-24 147-24 |
| AT14TS24-00 | 14000 | 33215 32219 |
2156 | 1840 | 1180 | 357 | □150 | Ø420×200 | Ø579 | Ø553.5 | 6-M20×2 | 8.50V-24 147-24 |
| AT16TS24-00 | 16000 | 32314 32222 |
2250 | 1850 | 1190 | 367 | □150 | Ø420×200 | Ø579 | Ø553.5 | 6-M20×2 | 8.50V-24 147-24 |
| AT18TS24-00 | 18000 | 32314 32222 |
2250 | 1850 | 1190 | 367 | □150 | Ø420×200 | Ø579 | Ø553.5 | 6-M20×2 | 8.50V-24 147-24 |
| AT16TS20-00 | 16000 | 32314 32222 |
2258 | 1850 | 1199 | 372 | □150 | Ø420×200 | Ø477 | Ø451.5 | 6-M20×2 | 8.50V-20 130-20 |
